| Main | |
|---|---|
| Range | Schneider – Digilink |

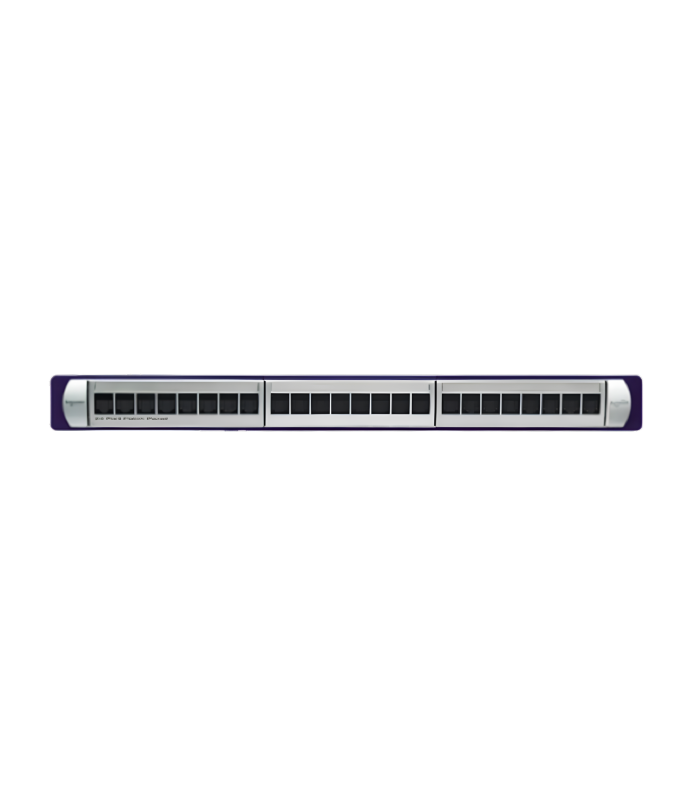

| Product or component type | Patch panel |
| Provided equipment | With RJ45 connectors |
| Communication network category | 6 |
| Accessory / separate part designation | Insulation displacement connector |
| Cable shielding type | UTP |
| Number of port | 24 |
| Complementary | |
| Connector type | RJ45 |
| Minimum number of matings | 750 cycles |
| [In] rated current | 1.5 A |
| Insulation resistance | >= 500 mΩ at 500 V DC |
| Contact resistance | 20 mΩ |
| Material | Panel: steel powder coated |
| Contacts material | Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| Width | 482.6 mm |
| Height | 44.2 mm |
| Number of rack unit | 1U |
| Environment | |
| Environmental characteristic | Flame retardant |
| Product certifications | UL listed, UL/ETL verified |
| Standards | ANSI/TIA-568-C.2 ISO/IEC 11801 class E EIA/TIA TSB 40 A |
