| Specification | Details |
|---|---|
| Device Model |

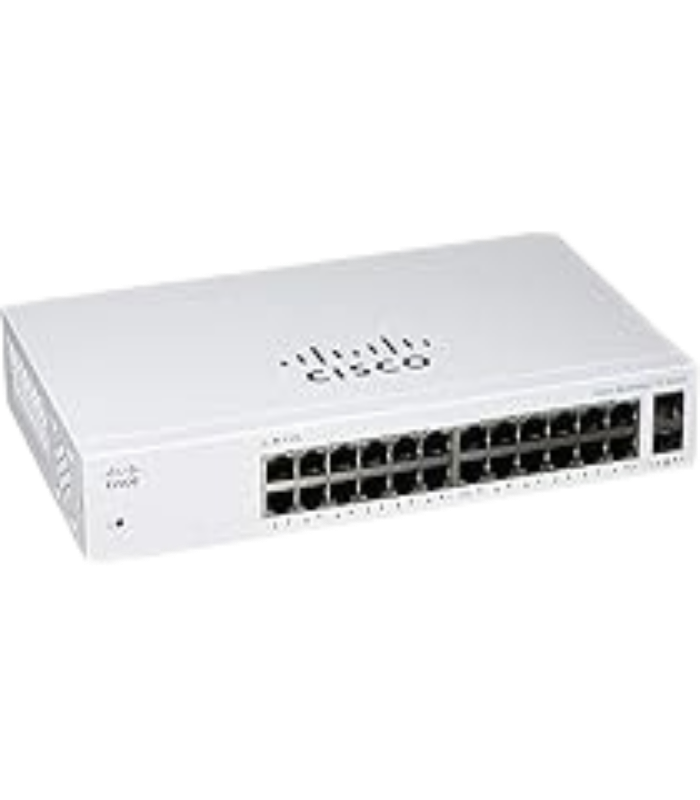

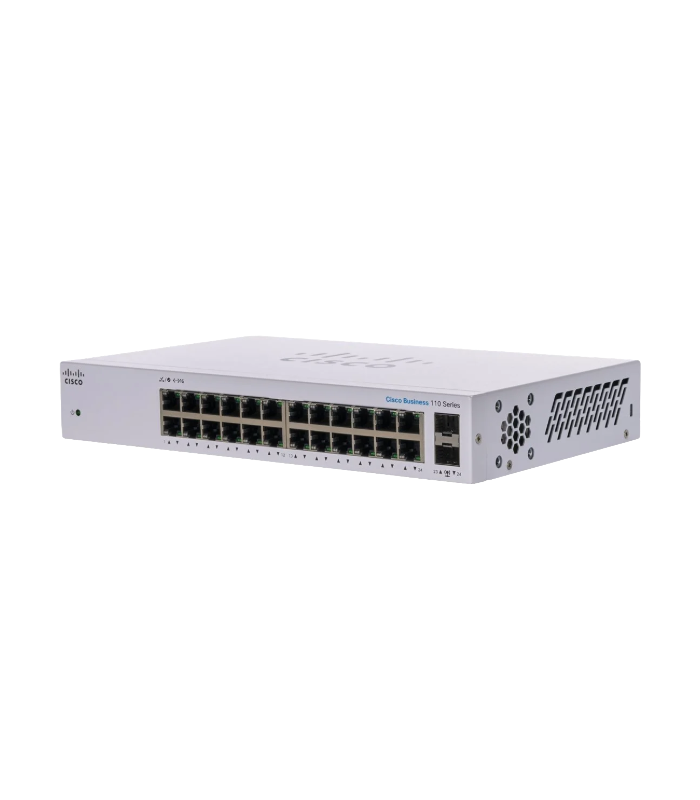

Cisco CBS110-24T-EU |
| Device Type | 24-port Gigabit Switch (10/100/1000 Mbps RJ-45) with 2 Gigabit SFP ports, rack mount type, suitable for high-speed networks. |
| Format & Standards | Format: Rack mount Network Management Type: Unmanaged |
| Performance | Capacity (64-byte packets): 35.7 mpps Switching Capacity: 48 Gbps |
| Ports & Interface | Primary Ports: 24 × RJ45 Primary Port Speed: 10/100/1000 Mbps 2 × SFP (Combo with 2 Gigabit Ethernet) |
| Data Transmission | HOL blocking prevention MAC Address Table: 8K Jumbo Frames: 9216 bytes QoS: 802.1p priority, 4 hardware queues, priority queuing & Weighted Round-Robin (WRR) Loop detection Cable diagnostics Auto MDI/MDI-X |
| Standards | IEEE 802.3 (10BASE-T) IEEE 802.3u (100BASE-TX) IEEE 802.3ab (1000BASE-T) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3x Flow Control 802.1p priority Energy Efficient Ethernet 802.3af PoE |
| Operation Systems / Memory | Flash: 8 MB CPU: 400 MHz ARM CPU Memory: 64 MB |
| Power | 110–240 VAC, 50–60 Hz, internal universal power supply Power Consumption: 110V = 16.3W, 220V = 16.34W |
| Details | Buffer Memory: 2 Mbit LED: Power, Link/Activity, Gigabit, PoE*, Max PoE* (*if present) |
| Dimensions & Weight | Dimensions : 279 × 170 × 44 mm (11 × 6.7 × 1.73 in) Weight: 1.56 kg (3.43 lb) |
| Environmental | Operating Temp: 0° to 40°C (32° to 104°F) Storage Temp: -20° to 70°C (-4° to 158°F) Operating Humidity: 10%–90% RH, non-condensing Storage Humidity: 5%–90% RH, non-condensing |
