| Specifications | Description |
|---|---|
| Capacity (mpps) | 35.7 mpps (64-byte packets) |
| Switching Capacity | 48 Gbps |
| Total System Ports | 24 Gigabit Ethernet |
| RJ-45 Ports | 24 Gigabit Ethernet |
| Power Dedicated to PoE | 100W |
| PoE Supported Ports | 12 Ports |
| Packet Buffer | 2 Mbit |
| Unit Dimensions (W × D × H) | 440 × 203 × 44 mm (17.32 × 7.97 × 1.73 in) |
| General | |
| Head-of-line (HOL) Blocking | HOL blocking prevention |
| MAC Table | 2K addresses for CBS110-5T-D 8K addresses for all other models |
| Jumbo Frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing, WRR |
| Loop Detection | Helps discover loops and prevent broadcast storms |
| Cable Diagnostics | Identifies cable faults and shorts |
| Media-Dependent Interface | Automatic MDI/MDI-X |
| Standards | IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z Gigabit Ethernet, 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af PoE |
| Hardware | |
| LEDs | Power, Link/Activity, Gigabit, PoE*, Max PoE* (*if present) |
| Cabling Type | Category 5e or better |
| Mounting Options | Desktop, wall-mount, or rack mount |
| Physical Security | Kensington lock slot |
| Flash | 16 MB for CBS110-16T, CBS110-16PP 8 MB for CBS110-24T, CBS110-24PP |
| CPU | 400 MHz ARM |
| CPU Memory | 128 MB for CBS110-16T, CBS110-16PP 64 MB for CBS110-24T, CBS110-24PP |
| Supported SFP Modules | |
| MGBSX1 | Multimode fiber, 1000 Mbps, 500 m |
| MGBLX1 | Single-mode fiber, 1000 Mbps, 10 km |
| MGBLH1 | Single-mode fiber, 1000 Mbps, 40 km |
| MGBT1 | UTP Cat 5e, 1000 Mbps, 100 m |
| Environmental | |
| Power | CBS110-5T-D, 8T-D: DC 12V, 1.0A CBS110-8PP-D: DC 48V, 1.25A CBS110-16T/16PP/24T/24PP: 110–240VAC, 50–60 Hz |
| Green Efficiency | Supports IEEE 802.3az (Energy Efficient Ethernet) |
| Compliance / Certifications | UL, CSA, CE, FCC Class A FCC Class B* (*select models) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | –4° to 158°F (–20° to 70°C) |
| Operating Humidity | 10% to 90%, non-condensing |
| Storage Humidity | 5% to 90%, non-condensing |
| Minimum Requirements | |
| Requirements | • Devices supporting 802.3/802.3u/802.3ab Ethernet • Cat5e or better Ethernet cable • Network interface card for each device |

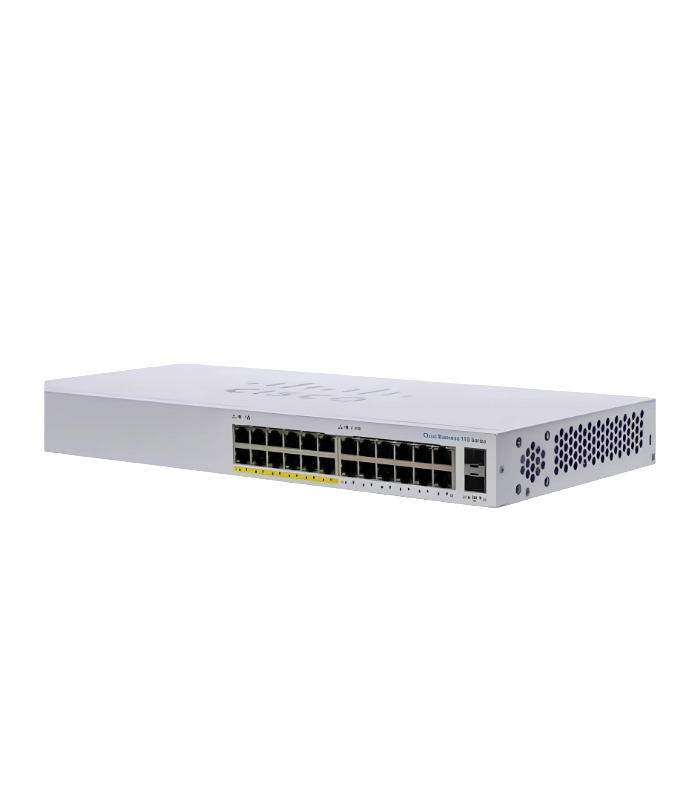

Cisco CBS110-24PP 24 port Gigabit Ethernet Unmanaged Switch, Partial PoE, 2x1G SFP Shared
Categories: Cisco, Routing & Switching Wireless (WIFI)
- Available
Only few items left. Hurry up!
රු0.00
- Order now, immediate shipping
- Made easy
- Secure payments
- Shipping from €6.50 VAT excluded
Specification
