| Specification | Details |
|---|---|
| Highlights | |
| Number of Ports | 24 |
| Port Speed | 10/100/1000 Mbit/s |
| Port Type | Copper |
| Uplink Ports (fixed) | 4x 1G SFP |
| Layer Type | Layer 2 |
| PoE Ports | PoE+ |
| General | |
| Device Type | Switch – 28 ports – smart |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet | PoE+ |
| PoE Budget | 382 W |
| Performance | 41.66 Mpps |
| Switching Capacity | 56 Gbps |
| MSTP Instances | 16 |
| VLANs Supported | 256 |
| ACL rules | 512 |
| Buffer Capacity | 4.1 MB |
| MAC Address Table | 8192 entries |
| Jumbo Frame | 9216 bytes |
| Routing Protocols | STP, RSTP, MSTP, IGMP, MLD |
| Management Protocols | SSH, SNMP, HTTPS, RADIUS, TACACS+ |
| Encryption | SSL |
| Authentication | RADIUS, TACACS, SSH2 |
| Features | |
| QoS, 802.1x, ACL, BPDU Guard, DoS Prevention, VLAN, Auto Voice VLAN, LACP, Loopback Detection, Port Security, Storm Control, IGMP Snooping, Link Aggregation, Port Mirroring, LLDP, Cable Diagnostics, Dual Firmware, Syslog, 2 fans | |
| Expansion / Connectivity | |
| Interfaces | 24 x RJ45 PoE+ (30W), 4 x 1G SFP |
| Power | |
| Power Device | Internal Power Supply |
| Voltage | AC 100–240V (50/60Hz) |
| Power Consumption | 459W |
| Miscellaneous | |
| Rack Kit | Included |
| MTBF | 588,411 hours |
| Compliance | UL, CSA, FCC, C-Tick |
| Regions | EU, CH, TR, RU, UAE, SA, Asia |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 25.7 cm |
| Height | 4.4 cm |
| Weight | 4.1 kg |
| Environmental | |
| Operating Temp | 0°C – 50°C |
| Humidity | 10–90% (non-condensing) |
| Storage Temp | -20°C – 70°C |

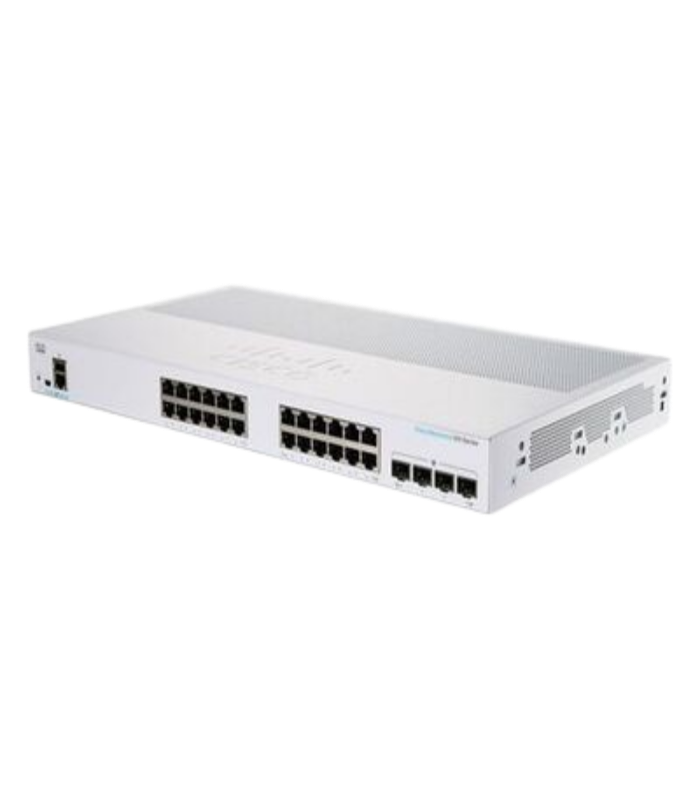

Cisco CBS220-24T-4X 24-Port Gigabit Smart Managed Switch with 4x10G SFP+
Categories: Cisco, Routing & Switching Wireless (WIFI)
- Available
Only few items left. Hurry up!
රු0.00
- Order now, immediate shipping
- Made easy
- Secure payments
- Shipping from €6.50 VAT excluded
