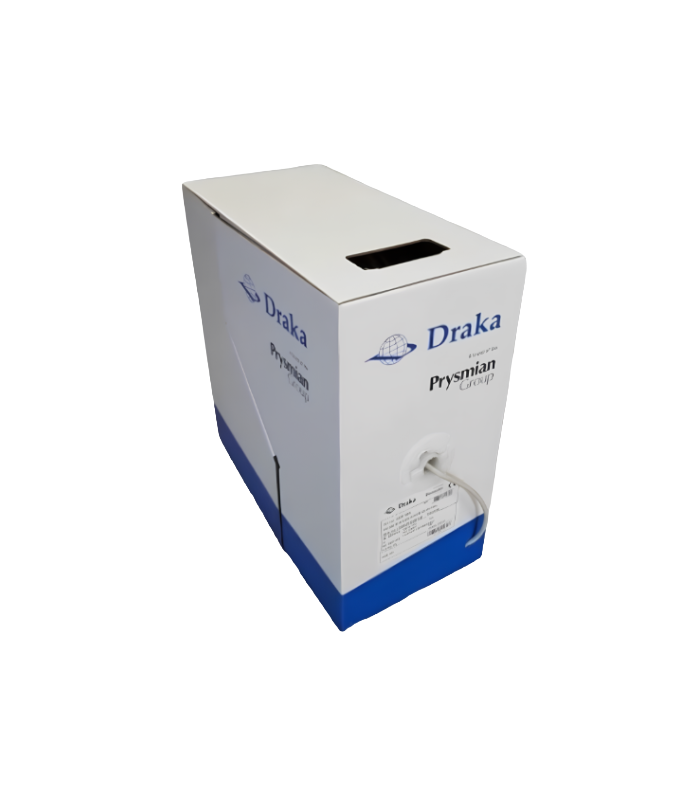

Name: Draka UC400 Cat6 U/UTP 4 Pair LSZH 23AWG Cable – Grey, 305m Box - Network Mart
SKU: 60075GY-3H
Availability: InStock

MAIN
Category	Cat.6 U/UTP
Conductor	Solid copper wire (23 AWG), Ø ≥ 0.546 mm
Insulation	PE
Pairs	4 pairs with non-metallic cross separator
Sheath Type	PVC / LSZH
Sheath Color	Grey
Outer Diameter	6.1 mm (Nom.)
Cable Length	305m Box
Cable Weight	39 kg/km (Approx.)
Applications	Generic cabling systems (Campus / Riser / Horizontal) IEEE 802.3: 10/100/1000Base-T IEEE 802.5 16 MB, ISDN, ATM PoE (802.3af), PoE+ (802.3at)
Standards Compliance	ANSI/TIA 568.2-D ISO/IEC 11801-1/2 IEC 61156-5 EN 50173-1 EN 50288-6-1
COMPLEMENTARY
Fire Rating	PVC: IEC 60332-1 LSZH: IEC 60332-1, IEC 60754-1 & 2, IEC 61034-2
Additional Features	Ripcord provided underneath the sheath
Notes	401-point swept frequency testing All values at 20°C Nominal values – subject to change Performance based on 100 m cable length
ENVIRONMENT & MECHANICAL
Bend Radius	With load: ≥ 8 × O.D Without load: ≥ 4 × O.D
Temperature Range	Operation: −20°C to +60°C Installation: 0°C to +50°C
Maximum Pulling Force	100 N

Draka UC400 Cat6 U/UTP 4 Pair LSZH 23AWG Cable – Grey, 305m Box
