| Main | ||
|---|---|---|
| SKU | NSM5 | |
| Brand | Unifi | |
| Dimensions | 294 x 31 x 80 mm (11.6 x 1.3 x 3.2″) | |
| Weight | 400g | |
| Enclosure material | Outdoor UV- Stabilized plastic | |
| Mounting | pole – mount (Kit included) | |
| Hardware | ||
| Networking interface | (2) 10/100 MbE Rj45 ports | |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) | |
| Power supply | 24V, 0.5A PoE adapter (Included) | |
| Supported voltage range | 22–27V DC | |
| Max. power consumption |
|
|
| Ambient operating temperature | -30 to 75° C (-22 to 167° F) | |
| Operating Humidity | 5 to 95% noncondensing | |
| Shock & vibration | ETSI300-019-1.4 | |
| Certifications | FCC, ICC, CE, RoHS | |
| NDAA Compliant | Yes | |
| System | ||
| Frequency | 5 GHz | |
| Gain | 14.6-16.1 dBi | |
| Cross-pol isolation | 22 dB Min. | |
| Max. VSWR | 1.6:1 | |
| Beamwidth | 43° (H-pol) / 41° (V-pol) / 15° (Elevation) | |
| Polarization | Dual Linear | |
| Operating frequency Worldwide |
5170-5875 MHz |
|

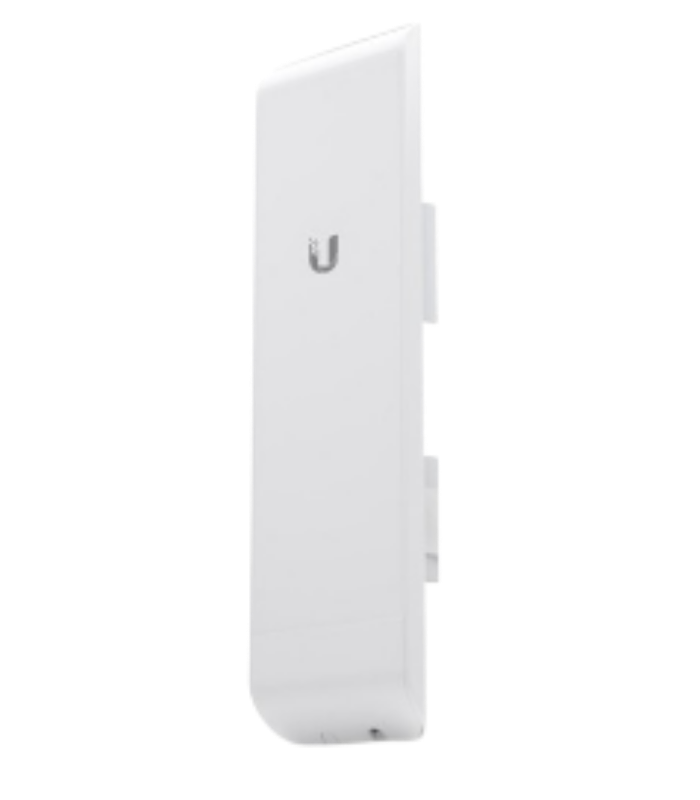

Nanostation M5 -Out Door Access Point
Categories: Routing & Switching Wireless (WIFI), Unifi
- Available
Only few items left. Hurry up!
රු0.00
- Order now, immediate shipping
- Made easy
- Secure payments
- Shipping from €6.50 VAT excluded
Specification
