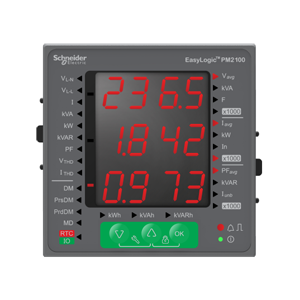

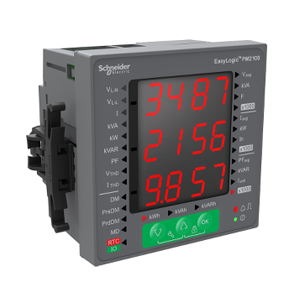

PM2130

PM2130

රු32,520.94

range
EasyLogic
product name
EasyLogic PM2100
device short name
PM2130
product or component type
Power meter
Qty:
Brand:

Specification

device application
Sub billing
Power monitoring
power quality analysis
total harmonic distortion
up to the 31st harmonic
type of measurement
Apparent power min/max, total
Active and reactive power min/max, total
Current min/max, avg
Voltage min/max, avg
Frequency min/max, avg
Total current harmonic distortion THD (I) per phase
Total voltage harmonic distortion THD (U) per phase
Power factor min/max, avg
Apparent energy total
Active and reactive energy total
metering type
Peak demand currents
Active power P, P1, P2, P3
Demand power P, Q, S
Reactive power Q, Q1, Q2, Q3
Apparent power S, S1, S2, S3
Active, reactive, apparent energy (signed, four quadrant)
Voltage U, U21, U32, U13, V, V1, V2, V3
Current I, I1, I2, I3
Calculated neutral current
Unbalance current
Peak demand power PM, QM, SM
accuracy class
Class 1 reactive energy conforming to IEC 62053-24
Class 0.5S active energy conforming to IEC 62053-22
Class 5 harmonic distorsion (I THD & U THD)
measurement accuracy
Apparent power +/- 0.5 %
Active energy +/- 0.5 %
Reactive energy +/- 1 %
Active power +/- 0.5 %
Voltage +/- 0.5 %
Power factor +/- 0.01
Current +/- 0.5 %
Frequency +/- 0.05 %
measurement current
5…6000 mA
measurement voltage
35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT
frequency measurement range
45…65 Hz
[Us] rated supply voltage
80…277 V AC 45…65 Hz +/- 10 %
100…277 V DC +/- 10 %
network frequency
50 Hz
60 Hz
ride-through time
50 ms 120 V AC typical
50 ms 230 V AC typical
50 ms 125 V DC typical
[In] rated current
1 A
5 A
maximum power consumption in VA
8 VA at 277 V AC
maximum power consumption in W
3.3 W (power lines (AC))
3.3 W at 277 V (power lines (DC))
input impedance
Current (impedance <= 0.3 mOhm)
Voltage (impedance > 5 MOhm)
tamperproof of settings
Protected by access code
display type
7 segments LED
display colour
Red
messages display capacity
3 fields of 4 characters
display digits
12 digit(s) – 14.2 mm in height
Demand intervals
Configurable from 1 to 60 min
information displayed
Demand current (past value)
Demand current (present value)
Demand power (past value)
Demand power (present value)
Voltage
Current
Frequency
Energy consumption
Harmonic distortion
Power factor
Active power
Apparent power
Reactive power
Unbalanced in %
control type
3 x button
local signalling
Red LED: output signal 1…9999000 pulse/ k_h (kWh, kVAh, kVARh)
Green LED: module operation and integrated communication
number of inputs
0
number of outputs
0
communication port protocol
Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none – 2 wires, insulation 2500 V
communication port support
Screw terminal block: RS485
data recording
Power logs
Time stamping
Energy consumption logs
Min/max for 8 parameters
function available
Real time clock
sampling rate
64 samples/cycle
cybersecurity
Enable/disable communication ports
communication service
Remote monitoring
product certifications
CE conforming to IEC 61010-1
CULus conforming to UL 61010-1
CULus conforming to CSA C22.2 No 61010-1
RCM
EAC
C-Tick
mounting mode
Clip-on
mounting position
Vertical
mounting support
Framework
provided equipment
1 x installation guide
measurement category
Category III 480 V
Category II 480…600 V
electrical insulation class
Class II
Double insulation
flame retardance
V-0 conforming to UL 94
connections – terminals
Current transformer: screw connection (bottom) 6
Voltage inputs: screw connection (top) 4
material
Polycarbonate
width
96 mm
depth
76.09 mm total:
61.64 mm embedded:
height
96 mm
net weight
300 g
compatibility code
PM2130
