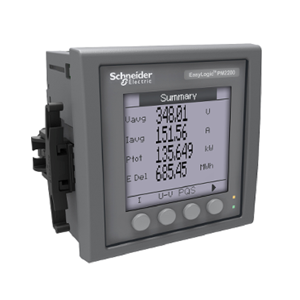

PM2220

PM2220

රු26,410.67

range
EasyLogic
product name
EasyLogic PM2200
device short name
PM2220
product or component type
Power meter
Qty:
Brand:

Specification

device application
Power monitoring
Sub billing
power quality analysis
total harmonic distortion
up to the 15th harmonic
type of measurement
Apparent power min/max, total
Active and reactive power min/max, total
Current min/max, avg
Voltage min/max, avg
Frequency min/max, avg
Total current harmonic distortion THD (I) per phase
Total voltage harmonic distortion THD (U) per phase
Power factor min/max, avg
Apparent energy total
Active and reactive energy total
metering type
Active, reactive, apparent energy (signed, four quadrant)
Current I, I1, I2, I3
Peak demand currents
Peak demand power PM, QM, SM
Unbalance current
Active power P, P1, P2, P3
Reactive power Q, Q1, Q2, Q3
Demand power P, Q, S
Voltage U, U21, U32, U13, V, V1, V2, V3
Apparent power S, S1, S2, S3
Calculated neutral current
accuracy class
Class 1 active energy conforming to IEC 62053-21
Class 1 reactive energy conforming to IEC 62053-24
Class 5 harmonic distorsion (I THD & U THD)
measurement accuracy
Apparent power +/- 1 %
Active energy +/- 1 %
Reactive energy +/- 1 %
Active power +/- 1 %
Voltage +/- 0.5 %
Power factor +/- 0.01
Current +/- 0.5 %
Frequency +/- 0.05 %
measurement current
5…6000 mA
measurement voltage
35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT
frequency measurement range
45…65 Hz
[Us] rated supply voltage
44…277 V AC 45…65 Hz +/- 10 %
44…277 V DC +/- 10 %
network frequency
50 Hz
60 Hz
ride-through time
100 ms 120 V AC typical
400 ms 230 V AC typical
50 ms 125 V DC typical
[In] rated current
1 A
5 A
maximum power consumption in VA
6 VA at 277 V AC
maximum power consumption in W
3.3 W (power lines (AC))
2 W at 277 V (power lines (DC))
input impedance
Current (impedance <= 0.3 mOhm)
Voltage (impedance > 5 MOhm)
tamperproof of settings
Protected by access code
display type
Backlit LCD
display colour
Monochrome
display resolution
128 x 128 pixels
Demand intervals
Configurable from 1 to 60 min
information displayed
Demand current (past value)
Demand current (present value)
Demand power (past value)
Demand power (present value)
Voltage
Current
Frequency
Energy consumption
Harmonic distortion
Power factor
Active power
Apparent power
Reactive power
Unbalanced in %
Harmonic amplitude
control type
4 x button
local signalling
Red LED: output signal 1…9999000 pulse/ k_h (kWh, kVAh, kVARh)
Green LED: module operation and integrated communication
number of inputs
0
number of outputs
0
communication port protocol
Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none – 2 wires, insulation 2500 V
communication port support
Screw terminal block: RS485
data recording
Time stamping
Min/max for 8 parameters
function available
Real time clock
sampling rate
64 samples/cycle
cybersecurity
Enable/disable communication ports
communication service
Remote monitoring
language
Spanish
French
English
Russian
Portuguese
German
Chinese
product certifications
CE conforming to IEC 61010-1
CULus conforming to UL 61010-1
CULus conforming to CSA C22.2 No 61010-1
RCM
EAC
C-Tick
mounting mode
Clip-on
mounting position
Vertical
mounting support
Framework
provided equipment
1 x installation guide
measurement category
Category III 480 V
Category II 480…600 V
electrical insulation class
Double insulation
Class II
flame retardance
V-0 conforming to UL 94
connections – terminals
Current transformer: screw connection (bottom) 6
Voltage inputs: screw connection (top) 4
material
Polycarbonate
width
96 mm
depth
76.09 mm total:
61.64 mm embedded:
height
96 mm
net weight
300 g
compatibility code
PM2220
