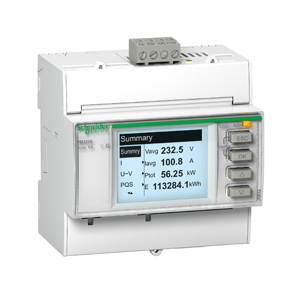

PM3255

PM3255

රු41,214.08

range
PowerLogic
product name
PowerLogic PM3000
device short name
PM3255
product or component type
Power meter
Qty:
Brand:

Specification

power quality analysis
up to the 15th harmonic
device application
Multi-tariff
Power monitoring
Sub billing
type of measurement
Active and reactive power
Apparent power
Current
Voltage
Energy
Power factor
Frequency
Total current harmonic distortion THD (I)
Total voltage harmonic distortion THD (U)
supply voltage
100…277 V AC 45…65 Hz
173…480 V AC 45…65 Hz
100…300 V DC
network frequency
60 Hz
50 Hz
[In] rated current
5 A
1 A
type of network
3P
3P + N
1P + N
power consumption in VA
5 VA
display type
Backlit LCD
display resolution
128 x 96 pixels
sampling rate
32 samples/cycle
measurement current
0.02…1.2 A
0.05…6 A
analogue input type
Current 0…5 A
Current 0…1 A
measurement voltage
50…330 V AC 45…65 Hz direct
50…330 V AC 45…65 Hz phase to neutral
80…570 V AC 45…65 Hz direct
80…570 V AC 45…65 Hz phase to phase
570…999000 V AC 45…65 Hz with external VT
frequency measurement range
45…65 Hz
number of inputs
2 digital 0…4 mA 11…40 V DC
measurement accuracy
Current 0.3 % 0.5…6 A
Current 0.5 % 0.1…1.2 A
Voltage 0.3 % 50…330 V
Voltage 0.3 % 80…570 V
accuracy class
Class 0.5S active energy conforming to IEC 62053-22
Class 1 active energy conforming to IEC 62053-21
Class 2 reactive energy conforming to IEC 62053-23
Class C active energy conforming to EN 50470-3
number of outputs
2 digital (static)
information displayed
Tariff (4)
communication port protocol
Modbus at 9.6…38.4 kbauds
communication port support
RS485
data recording
Energy consumption logs
15 alarms
Power logs
Time stamping
Min/max of instantaneous values
memory capacity
512 kB
mounting mode
Clip-on
mounting support
DIN rail
standards
IEC 61557-12
EN 50470-3
EN 61557-12
EN 50470-1
EN 61010-1
UL 61010-1
IEC 62052-11
product certifications
CE conforming to EN 61010-1
CULus conforming to UL 61010-1
UL
width
90 mm
depth
70 mm
height
95 mm
net weight
0.26 kg
