UniFi AC Mesh Wi-Fi Access Point

UniFi AC Mesh Wi-Fi Access Point

රු38,740.63

High-performance 802.11ac 2×2 MIMO access point for indoor and outdoor installations. Two RP-SMA connectors support external antennas.

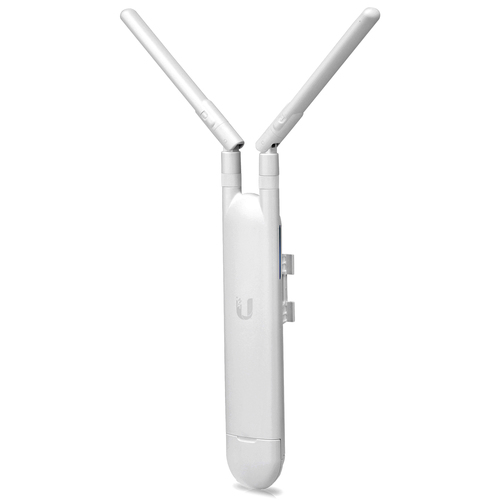

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti  UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2×2 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band Omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.

Qty:
SKU: UAP-AC-M Categories: , Tag:
Brand:

Description

Mechanical
Dimensions 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35″)
Weight 152 g (5.36 oz) with Antennas
Networking Interface 2×2 WiFi dual band / Ethernet Gigabit
Ports (1) 10/100/1000 Ethernet
Buttons Reset
Antennas 2 Dualband antennas
Wi-Fi Standards 802.11a/b/g/n/ac
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC)
Power Supply 24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption 8.5W
Max TX Power 20 dBm
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC
Mounting Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature -30 to 70° C (-22 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 100+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
