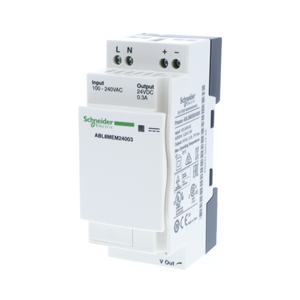

24V DC POWER SUPPLY

24V DC POWER SUPPLY

රු9,300.00

range of product
Modicon Power Supply
product or component type
Power supply
power supply type
Regulated switch mode
Nominal input voltage
100…240 V AC phase to phase, terminal(s): L1-L2
100…240 V AC single phase, terminal(s): N-L1
120…250 V DC
input voltage limits
85…264 V AC
rated power in W
7 W
output voltage
24 V DC
power supply output current
0.3 A
Qty:
Brand:

Specification

input protection type
Integrated fuse (not interchangeable)
inrush current
20 A
power factor
0.5 at 24 V DC
efficiency
78 %
Output voltage adjustment
22.2…28.8 V adjustable
power dissipation in W
2 W
current consumption
0.18 A 240 V AC
0.25 A 100 V AC
residual ripple
250 mV
output protection type
Thermal
Against short-circuits
connections – terminals
Screw type terminals: 2 x 0.14…2 x 2.5 mm², (AWG 26…AWG 14) for input connection
Screw type terminals: 2 x 0.14…2 x 2.5 mm², (AWG 26…AWG 14) for output connection
status LED
1 LED (green)output voltage
depth
59 mm
height
100 mm
width
36 mm
net weight
0.1 kg
output coupling
Parallel
Series
marking
CE
mounting support
35 x 7.5 mm symmetrical DIN rail
panel 2 screws, diameter : 4 mm
35 x 15 mm symmetrical DIN rail
operating position
Vertical
