UniFi Switch 24-port ,500W

UniFi Switch 24-port ,500W

Call for Price

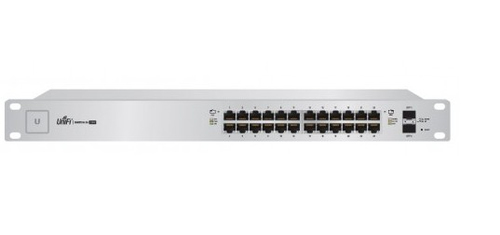

The UniFi Switch US-24-500W is 24-Port, Managed PoE+ Gigabit switch with 500W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The UniFi Switch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.

? (24) Gigabit RJ45 ports
? (2) SFP ports
? (1) Serial console port (reserved for future use)
? Total, non-blocking throughput: 26Gbps
? Switching capacity: 52Gbps
? Forwarding rate: 38.69Mpps
? Maximum power consumption: 500W
? Supports POE+ IEEE 802.3at/af and 24V Passive PoE
? Rackmountable
? Max power consumption: 500W

SKU: US-24-500W Categories: , Tag:



-Dimensions 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 11.24″)
-Weight 3.7 kg (8.16 lb)
-Total Non-Blocking Throughput 26 Gbps
-Switching Capacity 52 Gbps
-Forwarding Rate 38.69 Mpps0
-Max. Power Consumption US-24-500W – 500W
-Power Method 100-240VAC/50-60 Hz, Universal Input
-Power Supply: AC/DC, Internal, 500W DC
-LEDs Per Port
-Serial Console Port – N/A
-RJ45 Data Ports – PoE, Speed/Link/Activity
-SFP Data Ports – Speed/Link/Activity
-Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
-Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
-Certifications CE, FCC, IC
-Rackmount Yes, 1U High
-ESD/EMP Protection Air: ?24 kV, Contact: ?24 kV
-Operating Temperature -5 to 40? C (23 to 104? F)
-Operating Humidity 5 to 95% Noncondensing
-Shock and Vibration ETSI300-019-1.4 Standard
-PoE Per Port
-PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
-24VDC Passive PoE (Pins 4, 5+; 7, 😎
-Max. PoE+ Wattage per Port by PSE 34.2W
-Voltage Range 802.3at Mode 50?57V
-Max. Passive PoE Wattage per Port 17W
-24V Passive PoE Voltage Range 20-27V
