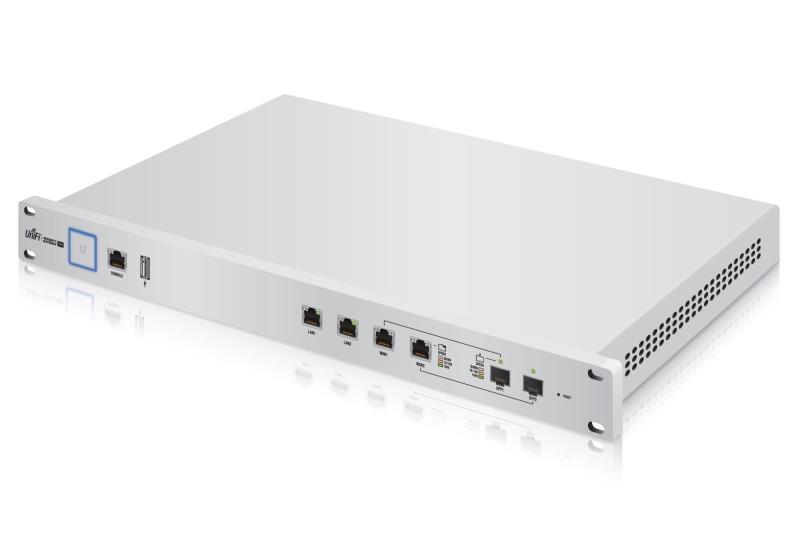

UniFi Security Gateway Pro, 4-port US

UniFi Security Gateway Pro, 4-port US

Call for Price

Build your secure and flexible network with Ubiquiti UniFi? Security Gateway Pro, part of the UniFi Enterprise System. The Unifi Security Gateway Pro is a high-performance Gigabit router, delivering robust security and advanced routing features. Two combination SFP/RJ45 ports provide fiber connectivity options capable of speeds of up to 1 Gbps.

Advanced hardware-accelerated packet forwarding delivers 1+ million packets per second performance. The Unifi Security Gateway PRO offers four independent Ethernet ports with a full line rate of 4 Gbps.

Features:

    • (2) Gigabit RJ45 Ethernet Ports
    • (2) Gigabit Combination RJ45/SFP Ports
    • 4 Gbps Full Line Rate Layer 3 Forwarding
    • 1+ Million Packets per Second for 64-Byte Packets
    • Sophisticated and Intuitive Graphical UI Control
    • Integrated and Managed by UniFi?Application
SKU: USG-PRO-4 Categories: , Tag:

Description

Mechanical
Dimensions 484 x 44 x 164 mm (19.06 x 1.73 x 6.46″)
Weight 2.3 kg (5.07 lb)
Max. Power Consumption 40W
Power Supply Internal AC/DC Power Adapter, 60W (24V, 2.5A)
Power Input 110 – 240VAC
LEDs
System
Data Ports
Status
Speed/Link/Activity
Networking Interfaces
Serial Console Port
Data Ports
(1) RJ45 Serial Port
(2) 10/100/1000 RJ45 LAN Ports
(2) 1 Gbps RJ45/SFP Combination WAN Ports
Layer 3 Forwarding Performance
Packet Size: 64 Bytes
Packet Size: 512 Bytes or Larger
2,400,000 pps
4 Gbps (Line Rate)
Processor Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory 2 GB DDR3 RAM
On-Board Flash Storage 4 GB
Certifications CE, FCC, IC
Rackmount Yes
Operating Temperature ?10 to 45? C (14 to 113? F)
Operating Humidity 10 to 90% Noncondensing
