Description

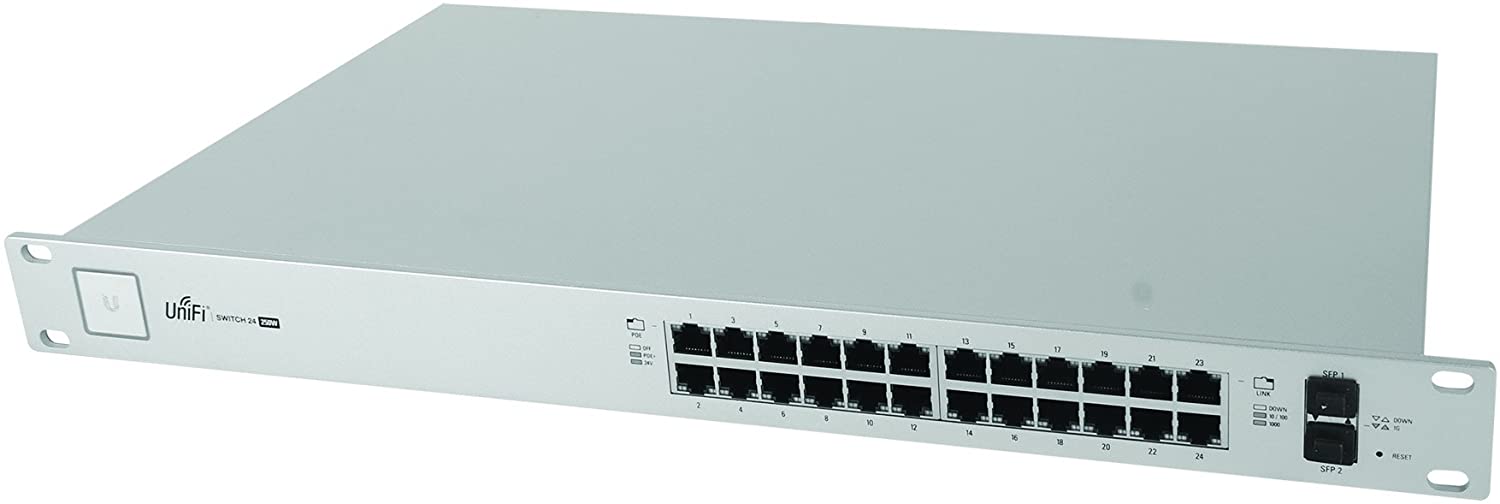

Ubiquiti UniFi US-24 (NON-POE) – Technical Specifications

General

• Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
• Weight:
  – Rack-Mount Brackets Excluded – 2.51 kg (5.53 lb)
  – Rack-Mount Brackets Included – 2.60 kg (5.70 lb)
• Networking Interfaces:
  – (24) 10/100/1000 Mbps RJ45 Ethernet Ports
  – (2) 1 Gbps SFP Ethernet Ports
• Management Interface: (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
• Total Non-Blocking Throughput: 26 Gbps
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Power Method: 100-240VAC/50-60 Hz, Universal Input
• Power Supply: AC/DC, Internal, 25W DC
• Max. Power Consumption: 25W
• LEDs per Port: Speed/Link/Activity
• Sound Level (Background noise level: 27.5 dBa):
  – Fan Level: 0: 1.6 dBr
  – Fan Level: 1: 9.2 dBr
• ESD/EMP Protection: Air: ? 24 kV, Contact: ? 24 kV
• Rack Mount: Yes, 1U High
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 40? C (23 to 104? F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
