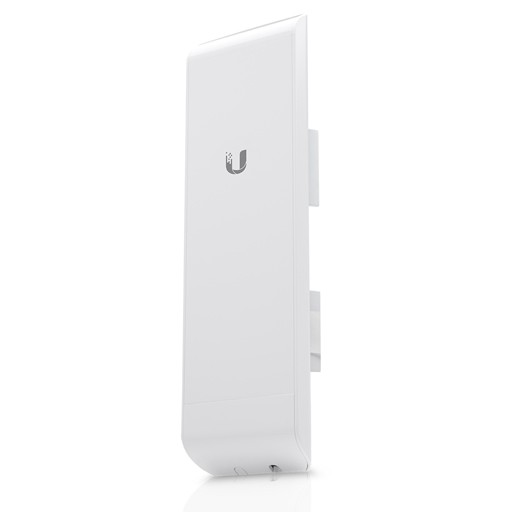

Nanostation M5 -Out Doar Wi-Fi ACCESS POINT

Nanostation M5 -Out Doar Wi-Fi ACCESS POINT

Call for Price

Featuring a panel antenna and dual-polarity performance, the NanoStation?M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

SKU: NSM5 Categories: , Tag:


Dimensions 294 x 31 x 80 mm
(11.57 x 1.22 x 3.15″)
Weight 400 g (14.11 oz)
Power Supply (PoE) 24V, 0.5A
Max. Power Consumption 8W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency
5170-5875 MHz
5725-5850 MHz
5250-5850 Mhz
Gain 14.6-16.1 dBi
Networking Interface (2) 10/100 Ethernet Ports
Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2, 8 MB Flash
Frequency 5 GHz
Cross-pol Isolation 22 dB Minimum
Max. VSWR 1.6:1
Beamwidth 43? (H-pol) / 41? (V-pol) / 15? (Elevation)
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Operating Temperature -30 to 75? C (-22 to 167? F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes
Shock & Vibration ETSI300-019-1.4
