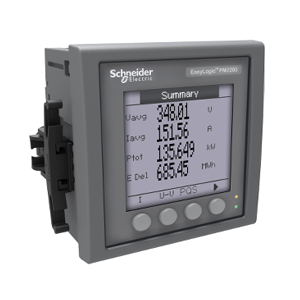

PM2210

PM2210

රු21,981.71

range
EasyLogic
product name
EasyLogic PM2200
device short name
PM2210
product or component type
Power meter
Qty:
Brand:

Specification

device application
Sub billing
Power monitoring
power quality analysis
total harmonic distortion
type of measurement
Apparent power min/max, total
Active and reactive power min/max, total
Current min/max, avg
Voltage min/max, avg
Frequency min/max, avg
Total current harmonic distortion THD (I) per phase
Total voltage harmonic distortion THD (U) per phase
Power factor min/max, avg
Apparent energy total
Active and reactive energy total
metering type
Voltage U, U21, U32, U13, V, V1, V2, V3
Unbalance current
Calculated neutral current
Apparent power S, S1, S2, S3
Peak demand currents
Current I, I1, I2, I3
Active, reactive, apparent energy (signed, four quadrant)
Active power P, P1, P2, P3
Reactive power Q, Q1, Q2, Q3
Peak demand power PM, QM, SM
Demand power P, Q, S
accuracy class
Class 1 active energy conforming to IEC 62053-21
Class 1 reactive energy conforming to IEC 62053-24
measurement accuracy
Apparent power +/- 1 %
Active energy +/- 1 %
Reactive energy +/- 1 %
Active power +/- 1 %
Voltage +/- 0.5 %
Power factor +/- 0.01
Current +/- 0.5 %
Frequency +/- 0.05 %
measurement current
5…6000 mA
measurement voltage
35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT
frequency measurement range
45…65 Hz
[Us] rated supply voltage
44…277 V AC 45…65 Hz +/- 10 %
44…277 V DC +/- 10 %
network frequency
60 Hz
50 Hz
ride-through time
100 ms 120 V AC typical
400 ms 230 V AC typical
50 ms 125 V DC typical
[In] rated current
1 A
5 A
maximum power consumption in VA
6 VA at 277 V AC
maximum power consumption in W
3.3 W (power lines (AC))
2 W at 277 V (power lines (DC))
input impedance
Current (impedance <= 0.3 mOhm)
Voltage (impedance > 5 MOhm)
tamperproof of settings
Protected by access code
display type
Backlit LCD
display colour
Monochrome
display resolution
128 x 128 pixels
Demand intervals
Configurable from 1 to 60 min
information displayed
Demand current (past value)
Demand current (present value)
Demand power (past value)
Demand power (present value)
Voltage
Current
Frequency
Energy consumption
Harmonic distortion
Power factor
Active power
Apparent power
Reactive power
Unbalanced in %
Harmonic amplitude
control type
4 x button
local signalling
Red LED: output signal 1…9999000 pulse/ k_h (kWh, kVAh, kVARh)
Green LED: module operating (RUN)
number of inputs
0
number of outputs
1 pulse
POP parameter
Pulse: 20 ms (5…40 V DC, 20 mA max)1…9999000 pulse/ k_h (kWh, kVAh, kVARh)
impulse duration
20 ms
communication port protocol
POP
sampling rate
64 samples/cycle
cybersecurity
Enable/disable communication ports
communication service
Remote monitoring
language
German
English
Chinese
Russian
Spanish
Portuguese
French
product certifications
CE conforming to IEC 61010-1
CULus conforming to UL 61010-1
CULus conforming to CSA C22.2 No 61010-1
RCM
EAC
C-Tick
mounting mode
Clip-on
mounting position
Vertical
mounting support
Framework
provided equipment
1 x installation guide
measurement category
Category III 480 V
Category II 480…600 V
electrical insulation class
Class II
Double insulation
flame retardance
V-0 conforming to UL 94
connections – terminals
Current transformer: screw connection (bottom) 6
Voltage inputs: screw connection (top) 4
material
Polycarbonate
width
96 mm
depth
76.09 mm total:
61.64 mm embedded:
height
96 mm
net weight
300 g
compatibility code
PM2210
