Switch Pro 24

Switch Pro 24

රු171,493.75

Layer 3 switch with (24) GbE RJ45 ports and (2) 10G SFP+ ports.

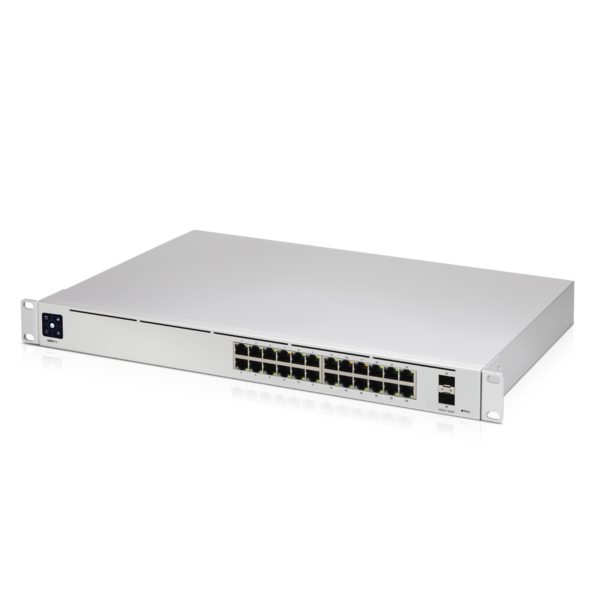

The Switch Pro 24 (USW Pro 24) is a fully managed switch with (24) GbE RJ45 ports and (2) 10G SFP+ ports. The USW Pro 24 combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 is an ideal aggregation and access layer switch for any UniFi system. It combines innovative, near-silent cooling capability with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

    • (1) 1.3″ LCM color touchscreen with AR switch management
    • (24) GbE RJ45 ports
    • (2) 10G SFP+ ports
    • (1) USP RPS DC input
    • Near-silent cooling
    • Layer 3 switching features
Qty:
SKU: USW-Pro-24 Categories: , Tag:
Brand:

Description

Mechanical
Dimensions 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72″)
Weight
With Brackets
3.50 kg (7.72 lb)
3.59 kg (7.92 lb)
Interfaces
Networking

Management

(24) 10/100/1000 RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
Total Non-Blocking Throughput 44 Gbps
Switching Capacity 88 Gbps
Forwarding Rate 65.472 Mpps
Power Method
Universal Input
USP RPS DC Input
100-240VAC, 50/60 Hz
11.5VDC, 2.61A
Power Supply AC/DC, Internal, 36W
Voltage Range 100 to 240VAC
Max Power Consumption 30W
LEDs
RJ45 Data Ports
SFP+ Data Ports
Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 – 90% Noncondensing
Certifications CE, FCC, IC
